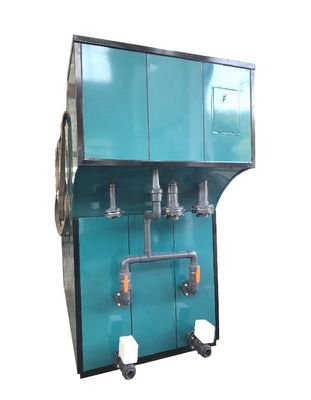

40m3/h Electrocoagulation Wastewater Treatment System 3-30 kW

تصویر بزرگ : 40m3/h Electrocoagulation Wastewater Treatment System 3-30 kW

جزئیات محصول:

محل منبع:	شانگهای ، چین
نام تجاری:	ECOPRO

پرداخت:

مقدار حداقل تعداد سفارش:	1
قیمت:	$36,897

مخاطب

توضیحات محصول جزئیات

بهره وری:	40m3/h	وزن:	2298 کیلوگرم
نوع پردازش:	تصفیه	قدرت:	3 کیلو وات ، 30 کیلو وات ، 20 کیلو وات
ولتاژ:	220 V ، 380 V ، 110 V	ظرفیت:	40m3/h
وزن الکترود:	11500 کیلوگرم	وزن خالی:	3500 کیلوگرم
وزن عملیات:	31000 کیلوگرم	ظرفیت درمانی:	1 متر مکعب در ساعت
مصرف برق:	3 کیلو وات در ساعت	بعد:	10006501500 میلی متر
وزن الکترود:	650 کیلوگرم	وزن خالی:	400 کیلوگرم
وزن عملیات:	1500 کیلوگرم
برجسته کردن:	40m3/h electrocoagulation wastewater system,electrocoagulation treatment system 3-30 kW,industrial wastewater electrocoagulation system , electrocoagulation treatment system 3-30 kW , industrial wastewater electrocoagulation system

Wastewater Treatment Station Electrocoagulation Wastewater Treatment

Electrocoagulation Equipment Electrocoagulator Electrocoagulation Water Treatment

Electrocoagulation system is a wastewater treatment process that utilizes metal hydroxide produced by soluble metal anodes during flocculation to remove contaminants from water. The anode material typically uses aluminum, iron, and other readily available, inexpensive metals.

Technical Specifications

Parameter	Value
Treating Capacity	1m³/h
Power Consumption	3kw/h
Dimension	1000×650×1500mm
Electrode Weight	650kg
Empty Weight	400kg
Operation Weight	1500kg

Electrocoagulation System Principle

Electrochemical reaction: Fe→Fe²⁺+2e

Anodizing reaction: 2OH⁻→2[O]+2e→O₂+2e. The nascent oxygen [O] has strong oxidation function comparable to UV, H₂O₂ and O₃.

Cathode reduction: 2H⁺+2e→2[H]→H₂. Nascent hydrogen can break bonds, COD, chromophore functional groups and multi-chain health.

These oxidation and reduction functions occur continuously on the plates.

Electrocoagulation System Features

Wide power supply adaptability: 220V-480VAC range available
Safe and convenient: Embedded isolated voltage circuit ensures electrical safety; multiple abnormal indications and protections (phase loss, overload, overcurrent, overvoltage, zero voltage, etc.)
Automatic control: Automatically detects ion state in water to adjust current and voltage
Energy efficient: Fe(OH)₂ and Fe(OH)₃ are excellent coagulants. No polymer required is a major feature

Company Introduction

Shanghai Ecopro Environmental Engineering Co., Ltd., the flagship company established in 2017, focuses on one-stop water & wastewater treatment equipment and separation service environment solutions. As a professional environmental engineering company, we adhere to craftsmanship spirit to provide industry with equipment, services, and systematic solutions.

Our product range includes static screens, rotary drum screens, polymer dosing systems, DAF systems, electrochemistry systems, screw presses, plate filter presses, sludge dryers, Mutag Biochips, sodium hypochlorite generators, and various pumps.
