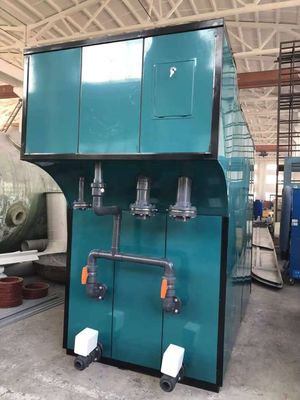

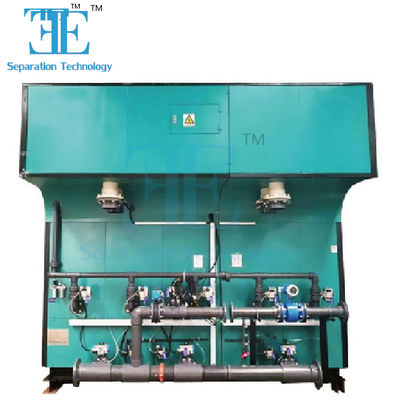

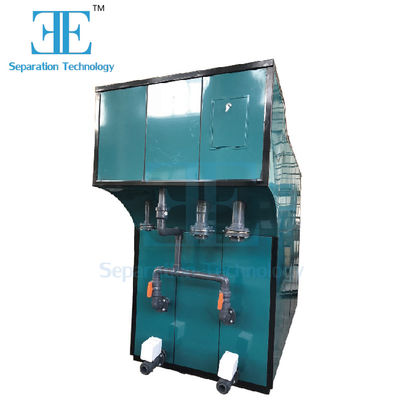

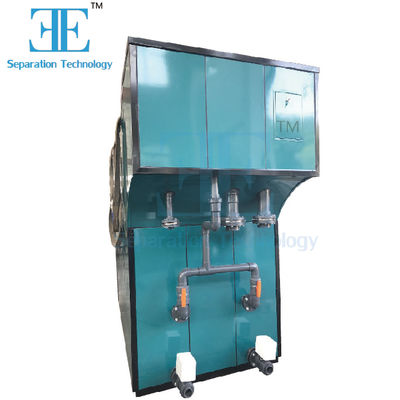

40m3/h Electrocoagulation Wastewater Treatment System 3-30 kW

تصویر بزرگ : 40m3/h Electrocoagulation Wastewater Treatment System 3-30 kW

جزئیات محصول:

محل منبع:	شانگهای ، چین
نام تجاری:	ECOPRO

پرداخت:

مقدار حداقل تعداد سفارش:	1
قیمت:	$36,897

مخاطب

توضیحات محصول جزئیات

بهره وری:	40m3/h	وزن:	2298 کیلوگرم
نوع پردازش:	تصفیه	قدرت:	3 کیلو وات ، 30 کیلو وات ، 20 کیلو وات
ولتاژ:	220 V ، 380 V ، 110 V	ظرفیت:	40m3/h
وزن الکترود:	11500 کیلوگرم	وزن خالی:	3500 کیلوگرم
وزن عملیات:	31000 کیلوگرم	ظرفیت درمانی:	1 متر مکعب در ساعت
مصرف برق:	3 کیلو وات در ساعت	بعد:	10006501500 میلی متر
وزن الکترود:	650 کیلوگرم	وزن خالی:	400 کیلوگرم
وزن عملیات:	1500 کیلوگرم
برجسته کردن:	40m3/h electrocoagulation wastewater system,electrocoagulation system 3-30 kW,industrial wastewater treatment electrocoagulation , electrocoagulation system 3-30 kW , industrial wastewater treatment electrocoagulation

Electrocoagulation Wastewater Treatment Station

Our electrocoagulation system is an advanced wastewater treatment solution that utilizes metal hydroxide produced by soluble metal anodes during flocculation to effectively remove contaminants from water. The system typically employs aluminum, iron, or other readily available metals as anode materials.

Technical Specifications

Parameter	Value
Treating Capacity	1m³/h
Power Consumption	3kw/h
Dimension	1000×650×1500mm
Electrode Weight	650kg
Empty Weight	400kg
Operation Weight	1500kg

Electrocoagulation System Principle

The system operates through electrochemical reactions:

Electrochemical reaction: Fe→Fe²⁺+2e
Anodizing reaction: 2OH⁻→2[O]+2e→O₂+2e (nascent oxygen [O] provides strong oxidation)
Cathode reduction: 2H⁺+2e→2[H]→H₂ (nascent hydrogen breaks bonds and functional groups)

These oxidation and reduction functions occur continuously on the plates for effective treatment.

System Features

Wide power adaptability: Operates within 220V-480VAC range
Safe operation: Embedded isolated voltage circuit ensures electrical safety with comprehensive protection (phase loss, overload, overcurrent, overvoltage, zero voltage)
Automatic control: Detects ion state in water to automatically adjust current and voltage
Energy efficient: Utilizes Fe(OH)₂ and Fe(OH)₃ as excellent coagulants without requiring polymers

About Shanghai Ecopro Environmental Engineering

Established in 2017, Shanghai Ecopro Environmental Engineering Co. Ltd specializes in comprehensive water and wastewater treatment equipment and separation services. As a professional environmental engineering company, we are committed to providing high-quality equipment, services, and systematic solutions to the industry.

Our product range includes static screens, rotary drum screens, polymer dosing systems, DAF systems, electrochemistry systems, screw presses, plate filter presses, sludge dryers, Mutag Biochips, sodium hypochlorite generators, and various pumps.

Product Packaging

برچسب:

سیستم الکتروکوگولاسیون فاضلاب صنعتی,تجهیزات الکتروکوگولی,سیستم الکتروکوگولی برای تصفیه فاضلاب,

40m3/h electrocoagulation wastewater system,electrocoagulation system 3-30 kW,industrial wastewater treatment electrocoagulation,

electrocoagulation system for wastewater treatment
